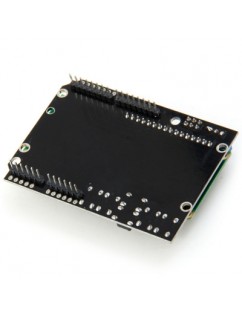

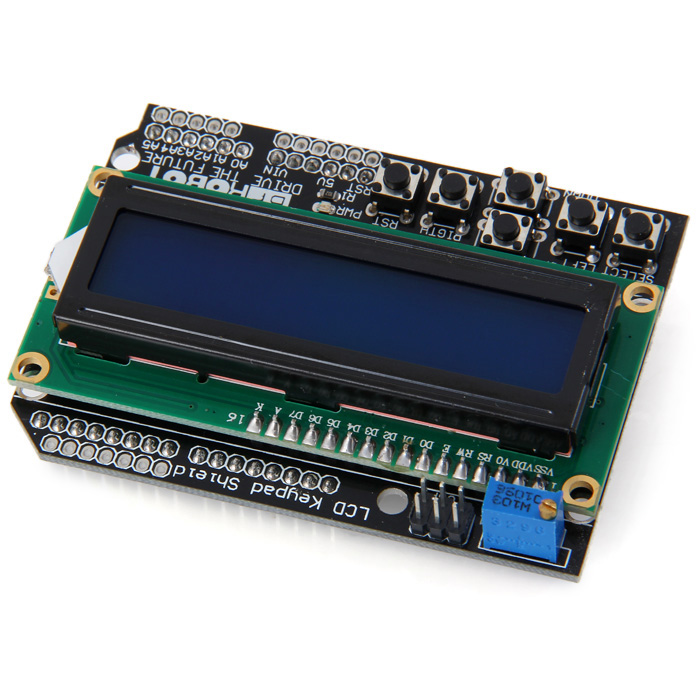

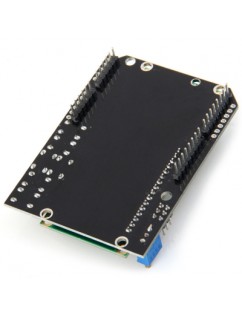

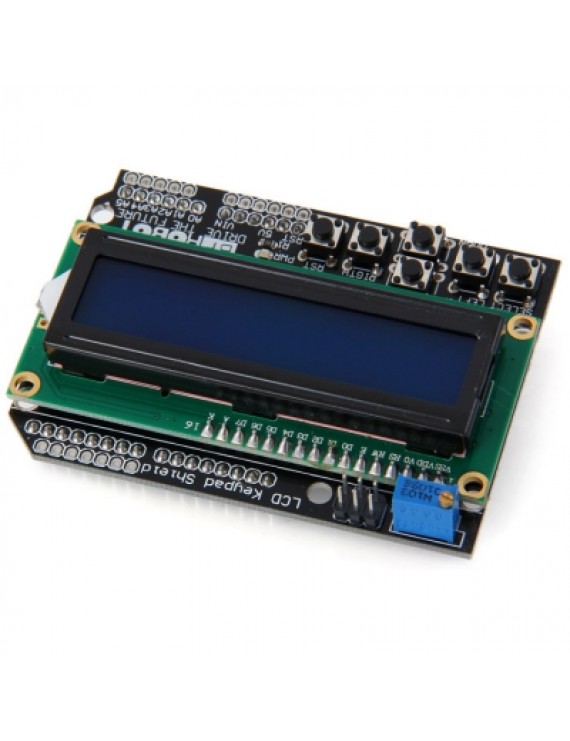

LCD1602 Character LCD Keypad Shield

LCD1602 Character LCD Keypad Shield

Product Code:139528601
Availability:In Stock
  • $26.03

  • Ex Tax: $26.03

Available Options


LCD1602 Character LCD Keypad Shield V1.0 with Contrast Adjustment and Backlight for Arduino Developer

Description:
LCD Keypad Shield input and output expansion board using the 2-line, 16-character LCD with contrast adjustment. And backlight will complete five key input by using an analog port, a reset button, the the unused IO port expansion out for spare use, making full use of the IO port. Occupancy digital port: PIN4 (DB4), 5 (DB5), 6 (DB6), 7 (DB7), 8 (RS), 9 (E), 10 (backlight control), the analog button port A0.



Type: LCD1602 Character LCD Keypad Shield
Screen type: LCD
Screen size: 1.4 inch
Mainly Compatible with: Ardunio


0.054
Package weight: 0.079 kg
Product Size(L x W x H): 8.00 x 5.80 x 1.80 cm / 3.15 x 2.28 x 0.71 inches
Package Size(L x W x H): 14.00 x 8.70 x 2.00 cm / 5.51 x 3.43 x 0.79 inches


Package Contents: 1 x LCD1602 Character LCD Keypad Shield











LCD1602 Character LCD Keypad Shield V1.0 with Contrast Adjustment and Backlight for Arduino Developer
